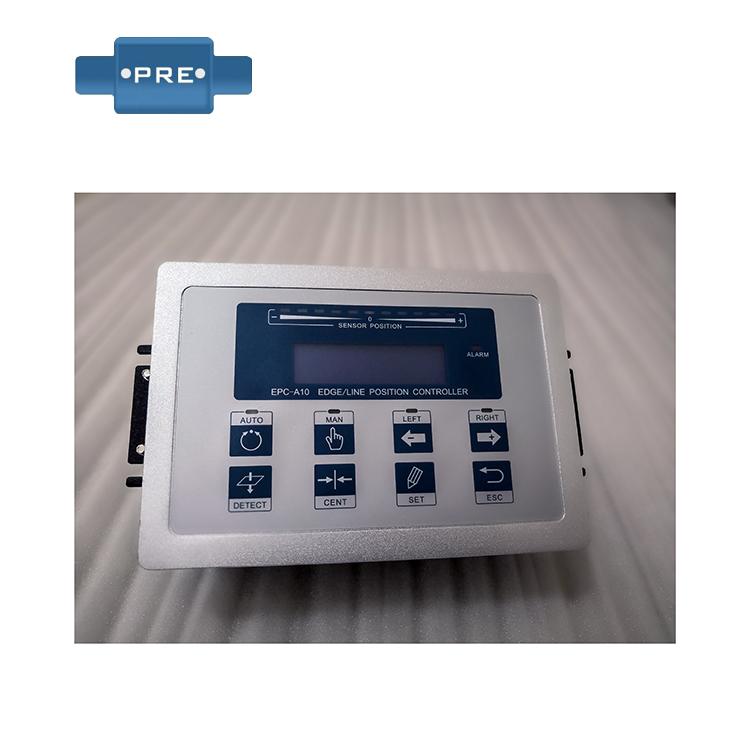

Web Guide Controller EPC-A10
Next Product:
Line Guide Controller EPC-D12Back Product:
Silicone rubber rollerDetailed Product Description

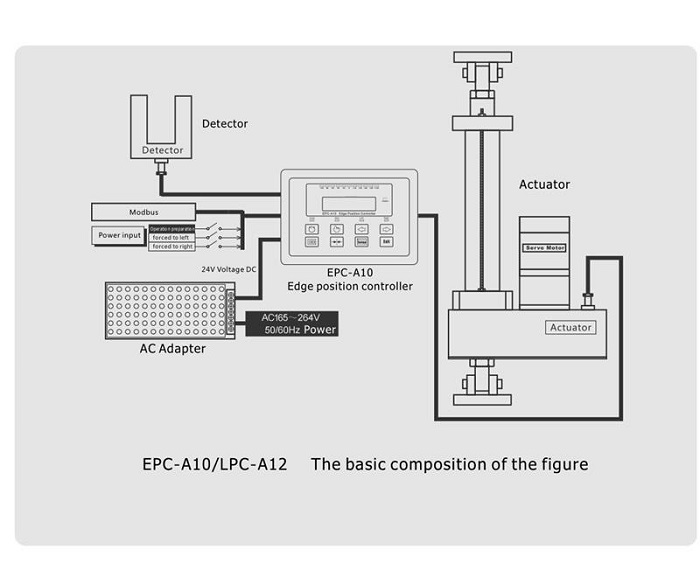

Servo Deviation Rectification Controller EPC-A10/LPC-A12 adopts the high-speed 32-bit CPU drive DC servo driver and no-overshot integral variable PI adjustable algorithm
it is of high deviation rectification and fast reaction.
In addition, it supports three operation modes: the edge-following, line-following and centre-alignment mode.
Parameters:
1. Support three operation modes: edge-following, line-following and center-alignment.
2. Support photoelectric sensor, ultrasonic transducer and CCD Sensor
3.Detect sensor’s parameters intelligently, no need to correct the sensor under most circumstances
4. Automatic travel measurement, no need to limit the switch mechanically.
5.No overshot integral variable PI algorithm, high accuracy, fast reaction and less error.
6. 0.5msec super-speed of responding
7.Analog quantity transducer signal 12bit AD sampling, 700,000 times of sampling per second
8. Adopt FIR digital filter and return difference filter, stronger antiinterference capability and more stable signal
9. DC servo motor to push the ball screw
10.Power-down memory of all the parameters at any states in the system
11.Store 10 groups of parameters from different material, convenient and efficient switchover of material
12.Simplified Chinese/ Traditional Chinese /English for menu operation
13.Humanized operation, fast, simple and convenient
14.Support Modbus and PLC/Human-computer networking control

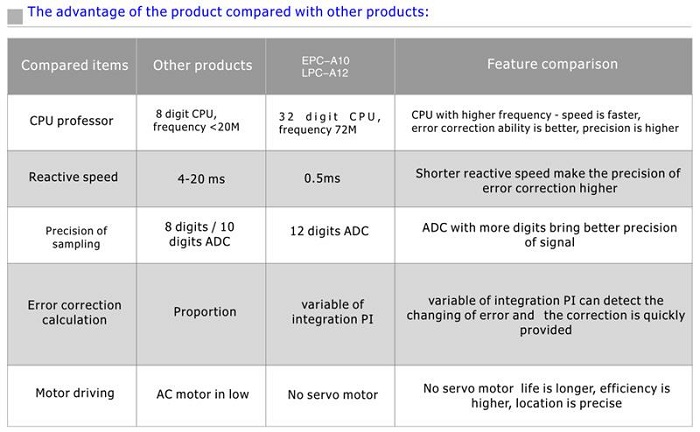

Main Advantages:

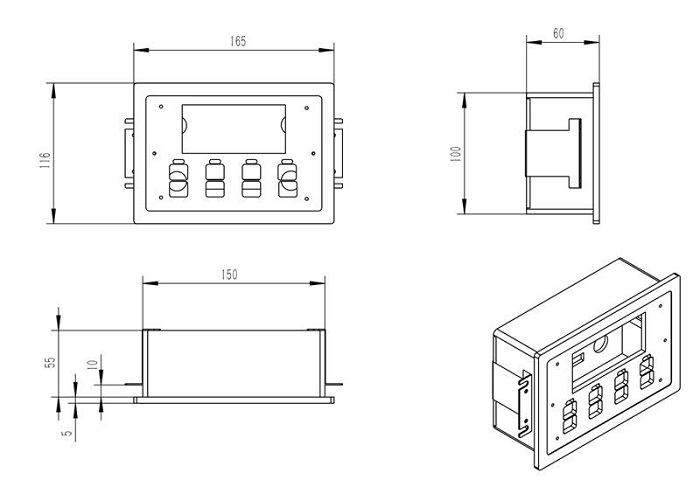

Dimension:

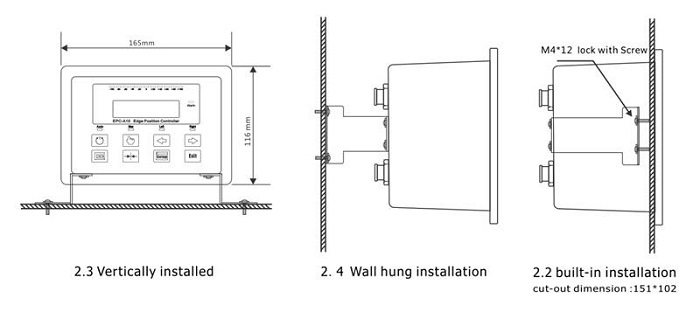

Installation:
